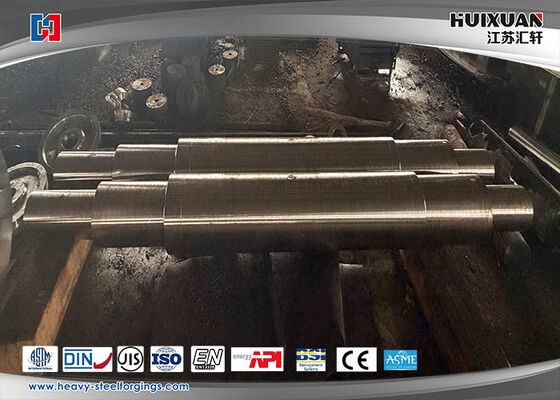

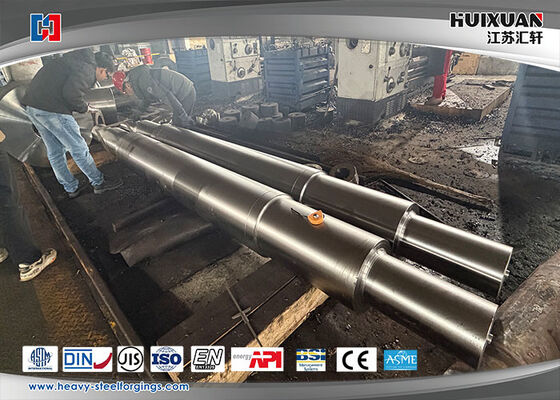

Alloy Steel Forgings 25Cr2Ni4MoV,34CrNiMo6 Heavy steel shaft,motor shaft.

Alloy Steel Forgings 25Cr2Ni4MoV,34CrNiMo6 Heavy steel shaft,motor shaft.

Products:

What is a Motor Shaft?

The motor shaft, also called the rotor shaft​ or armature shaft, is the central mechanical component of an electric motor. It is the rotating element that transmits the torque​ generated by the motor to the driven machine or load. The shaft is a critical link between the electrical energy converted into mechanical energy inside the motor and the external application.

Main Functions

Torque Transmission:​ Transfers rotational force from the motor's rotor to the coupling, pulley, gear, or other connected device.

Supports Rotating Assembly:​ Provides the structure on which the rotor core (laminated iron stack), windings (in AC induction motors), or permanent magnets (in PM motors) and sometimes fans are mounted.

Maintains Air Gap:​ Its precise machining and alignment ensure a consistent and minimal air gap between the rotor and stator, crucial for motor efficiency and performance.

Bearing Mounting:​ The sections of the shaft (journals) are precisely machined to house the bearings, which allow smooth rotation and support radial/axial loads.

Key Design Characteristics & Materials

Material:​ Typically made from high-strength, low-carbon steel (e.g., AISI 1045) or alloy steels. Stainless steel or other materials are used for corrosive environments. The material is heat-treated for surface hardness and core toughness.

Machining:​ Precisely machined to tight tolerances for diameter, straightness, and surface finish at key locations.

Key Features:

Bearing Journals:​ The smooth, accurately sized sections where bearings are press-fitted.

Shaft Extension:​ The protruding end that connects to the load. It often has a keyway​ (for a Woodruff or square key) and a threaded hole for a retaining bolt.

Rotor Stack Mount:​ The section where the laminated rotor core is stacked, sometimes featuring slots​ or a serration​ to prevent rotation.

Shaft End:​ May be machined for an encoder, resolver, or cooling fan.

Common Types & Configurations

Standard Keyed Shaft:​ The most common type, using a parallel key to transmit torque.

Keyless (Tapered or Clamped) Shaft:​ Uses a tapered bushing and locking mechanism for a friction grip, allowing easier installation/removal and zero-backlash connection.

Round Shaft:​ A smooth shaft, often used with friction-based attachments or set screws (less torque capacity).

Splined Shaft:​ Has axial grooves (splines) for high-torque transmission and applications requiring axial movement.

Hollow Shaft:​ Allows another shaft, cable, or tool to pass through the center, common in some pumps and direct-drive applications.

Double Extension Shaft:​ Has shaft extensions on both ends of the motor, often used for mounting a fan or second device.

Important Considerations

Load Capacity:​ The shaft must be designed to withstand the motor's rated torque, as well as any overhung (pulley-induced) radial loads and axial (thrust) loads without excessive deflection.

Critical Speed:​ The rotational speed at which the shaft enters resonance. Operating speeds must be kept safely below this to prevent severe vibration and failure.

Runout & TIR:​ Total Indicator Runout (TIR) measures the shaft's wobble or deviation from perfect rotation. Low runout is vital for smooth operation and long bearing life.

Shaft Grounding:​ In VFD-driven motors, a grounding brush or ring is sometimes used to prevent electrical discharge (bearing currents) from damaging the bearings via the shaft.

Failure Modes

Shear Failure:​ From excessive torque, often at the keyway.

Bending/Fatigue Failure:​ From excessive radial loads or misalignment.

Bearing Seat Wear:​ Leads to bearing loosening and failure.

Corrosion:​ In harsh environments.

In summary, the motor shaft is a fundamental, precision-engineered component that ensures the reliable mechanical output of an electric motor. Its design is closely matched to the motor's electrical performance and the mechanical demands of the application.

Products reference:

Process procedure:

Forging process flow quality control:

1. Raw material steel ingot into warehouse(test the chemical content)
2. Cutting→ Heating(Furnace temperture test)
3. Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)

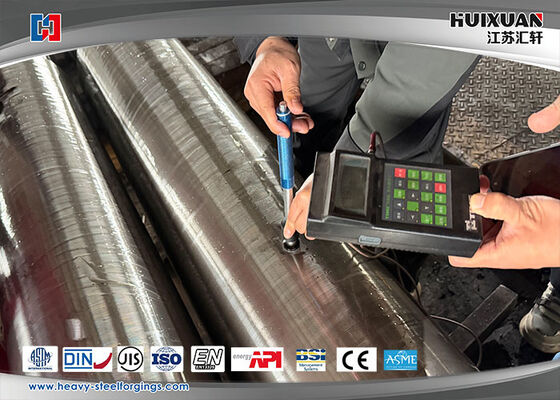

4. Machining→ Inspection(UT,MT,Visal diamention, hardness)
5. QT→ Inspection(UT, mechanical properties, hardness, grain size)

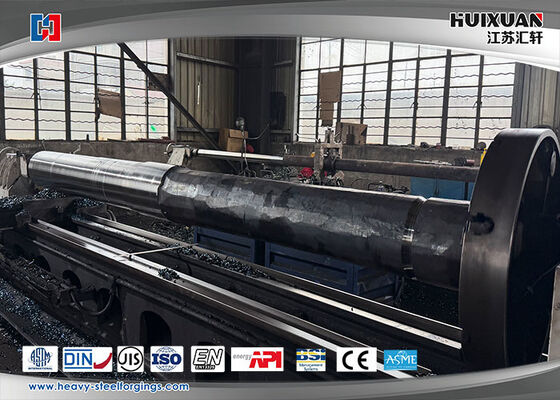

6. Finish machining→ Inspection (dimension)
7. Packing and Marking(steel stamp, mark)→ Storage Shipment

Custom properties

Commerce clause

Advantage

1. High-precision dimensional tolerance;
2. Excellent mechanical properties;
3. Produce different dimension based on customer’s requirements;
4. Advanced manufacture equipments and inspection devices;
5. Excellent technical personality;
6. Control the production procedure strictly;
7. Pay attention on the package protection;
8. Quality full service.
